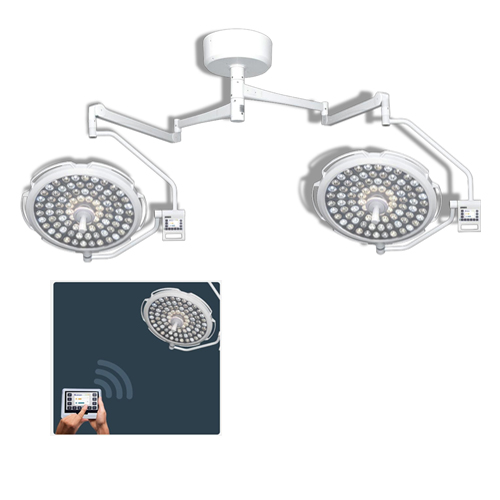

MV-2X700

LED SHADOWLESS OPERATING LIGHT

FEATURES

Three lighting modes

Three Lighting Mode suit for various operation with different lighting

Product characteristic

Using high brightness LED cold light source, the service life of LED light emitting secondary tube is more than 50,000 hours, light decay is low, energy saving, service life is long, and the Composition of ultraviolet and infrared ray is very low.
Using digital dimming technology to meet the doctor’s requirements for different brightness, and stable color temperature.
The control board adopts the high quality constant current chip with constant current output, the current is more accurate, the quality is more reliable.
LED dot matrix series and arrangement, even if the individual LEDs are not lit, the overall brightness is rarely affected.
The spot can be continuously adjusted to meet the requirements of different doctors for the visual field of surgery.
High color index, to meet the doctor’s blood vessels, internal organs and different tissue discrimination.
Low temperature rise, the temperature rise of the exposed surface is converted into the measurement of total irradiance. The total radiant illuminance Ee of an area 1m away from a single lamp cap does not exceed 1000W/m²
Lighting performance: with excellent shadowless rate, deep cavity lighting, light column depth.

Kategori: OPERATING LAMP, VieCare

Deskripsi

MODEL		MV-2X700D
Main Parameter (@ Lamp Head)		700D		700D
Work temperature		5℃～40℃
Relative humidity		Less than 80%
Work Voltage		AC 220V
Power frequency		50Hz
Power supply		AC 220V 0.6A
Operation mode		continuous operation
Input power		100VA	100VA
Ultraviolet radiation		UV radiation below 400nm should not exceed 10W/m2
Center illumination Ec		40kLx-160kLx
Spot diameter D10		180-280		180-280
Spot distribution（D50/D10)		>0.5
	Residual illumination of single mask	≥50%		≥50%
	Double shade residual illumination	≥40%		≥40%
Shadow compensation		NO		NO
Light depth(mm)		≥600		≥600
Color temperature		4000K≤Tc≤6500K		4000K≤Tc≤6500K
Color rendering index		Ra≥90		Ra≥90
Total radiation measurement		≤1000W/m2		≤1000W/m2
Install height (cm)		280-320		280-320
