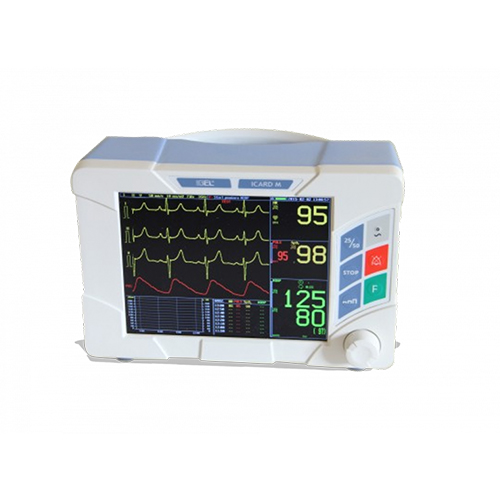

Simple bedside monitors ICARD M
Designed to monitor the main vital parameters of the patient in the postoperative rooms
Characteristic features:
● case dimensions (without holder): – 268 x 185 x 124 mm
● weight: – about 3.0 kg
● display: – 8,4” LED backlit
● display resolution: – 800 x 600 pixels (SVGA)
● battery operation time – 3.5 – 4 hours, depending on the operation mode
Electrocardiography (ECG)
- Cable with three or five electrodes
- Presentation of 3 of 7 leads: I, II, III, aVR, aVL, aVF, Vx (with afive-electrode cable)
- Heart rate
Pulse oximetry
- Pulse rate
- Oxygenation ( SpO)
- Perfusion Index (PI)
- Plethysmogram
NIBP
- Presentation of the values of SYS, DIA, MEAN pressure
- Measurement algorithms for adults, children and newborns
Invasive blood pressure measurement (single channel IBP)
- Presentation of the values of SYS, DIA, MEAN pressure
- Pressure wave
- Labels describing the pressure wave: P, ART, CVP, PA, ICP, UAC, UVC
Side stream capnography (sampling flow 50 ml / min.)
- EtCO2, FiCO, respiration rate
- Capnogram
Thermometry (single channel)
- Skin or deep temperature (depends on sensor type)
Options
Communication module with the central station -2.4 GHz wireless connection
Brochure & Specification Link Download :
https://drive.google.com/file/d/1a7lDppD52c_w0n1Be2CJ-Z6fWSE58S88/view?usp=sharing
